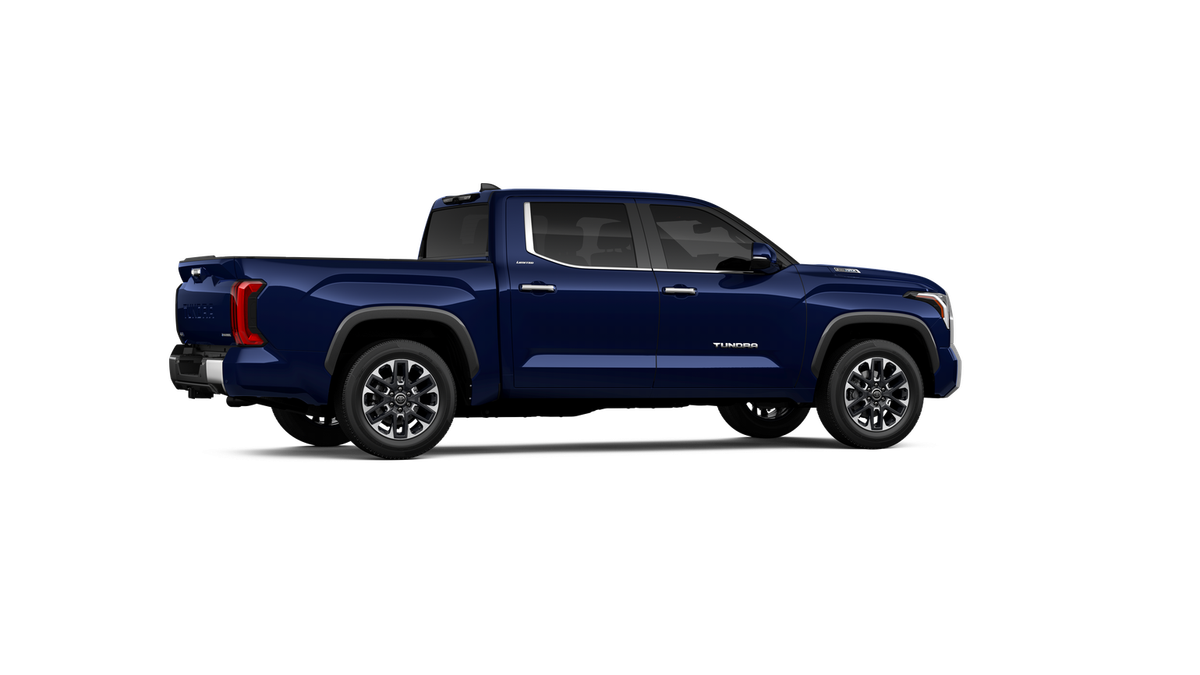

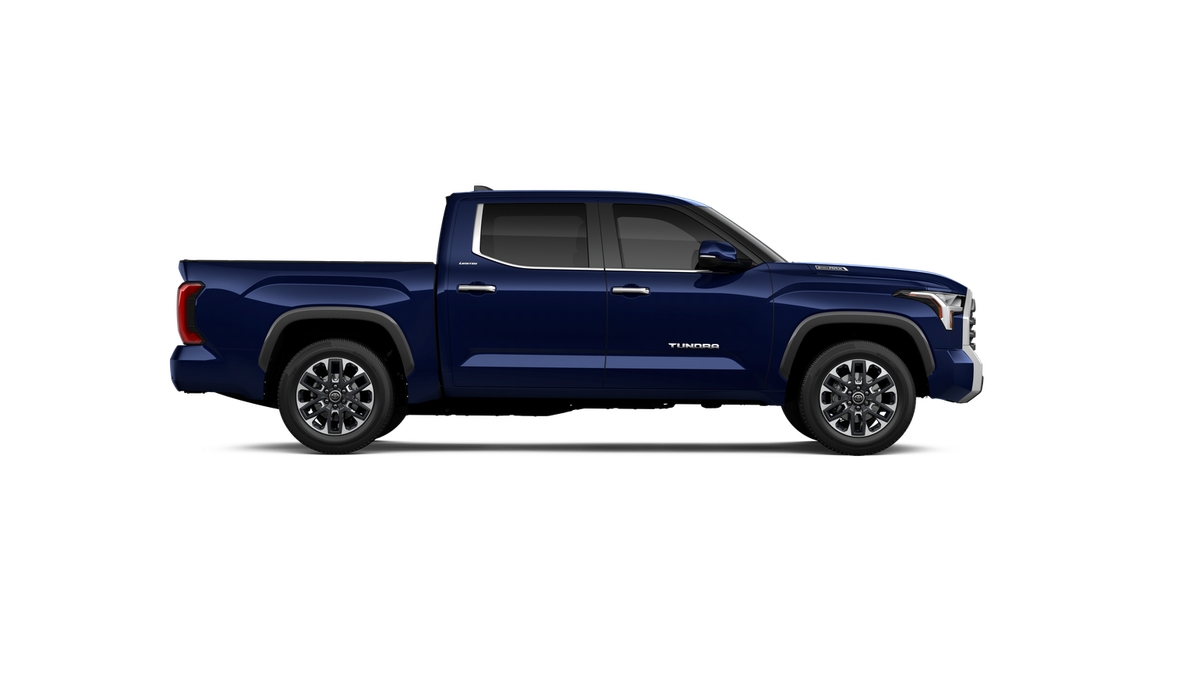

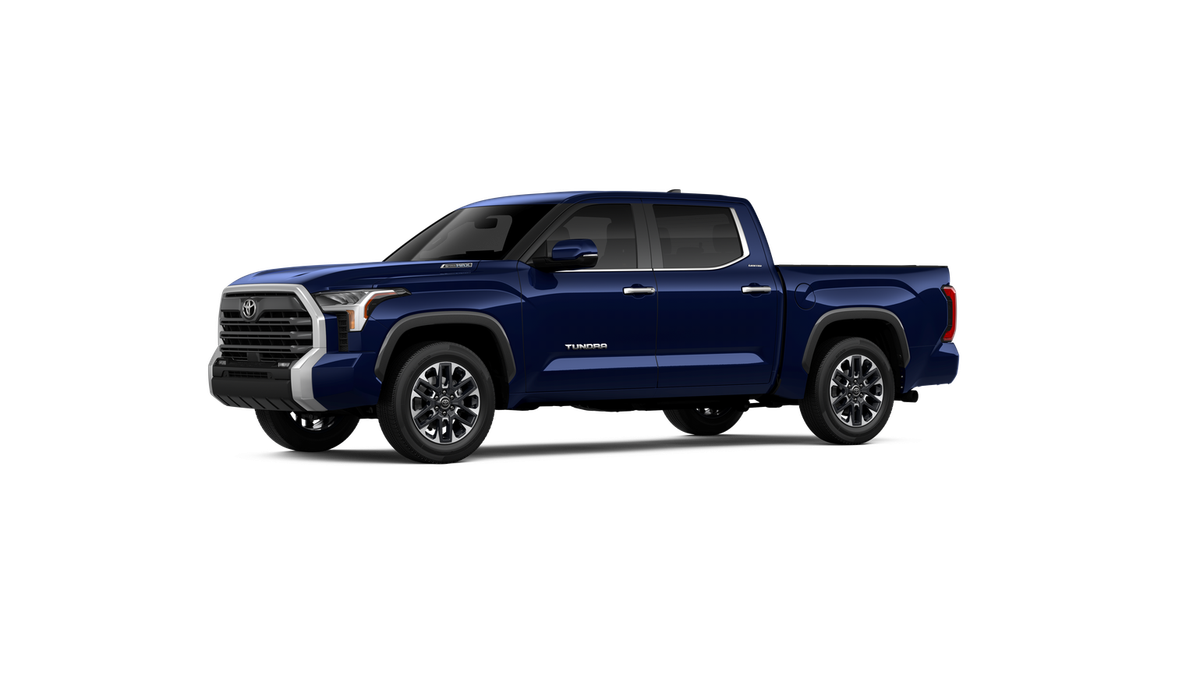

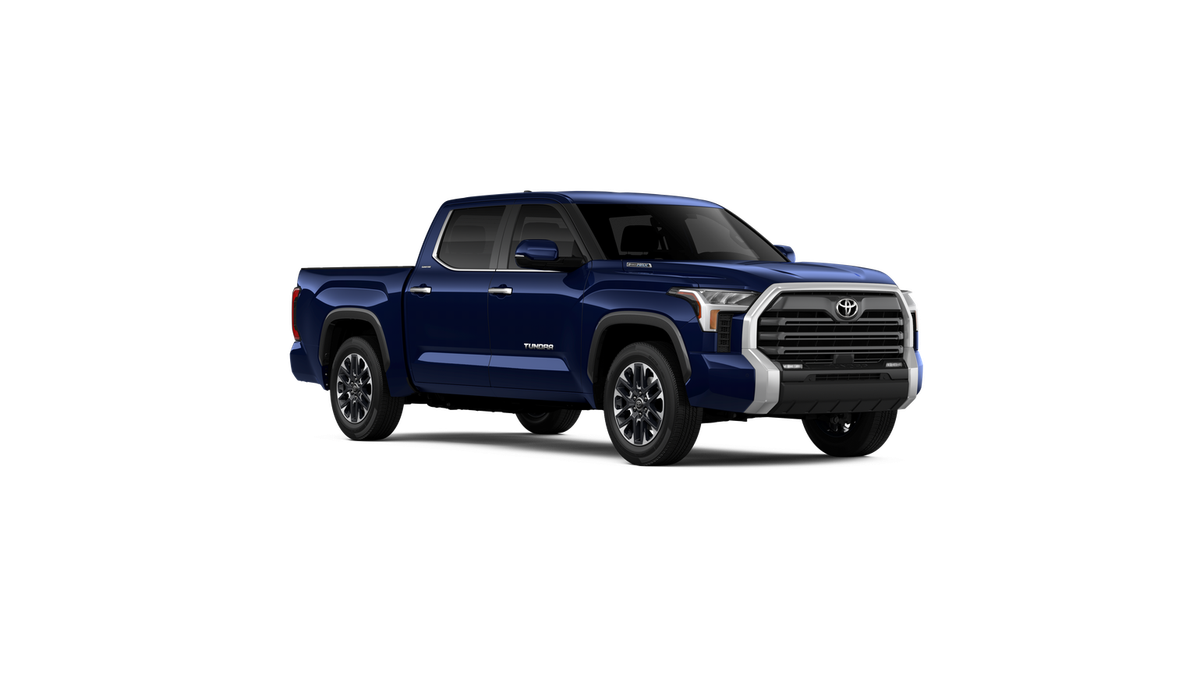

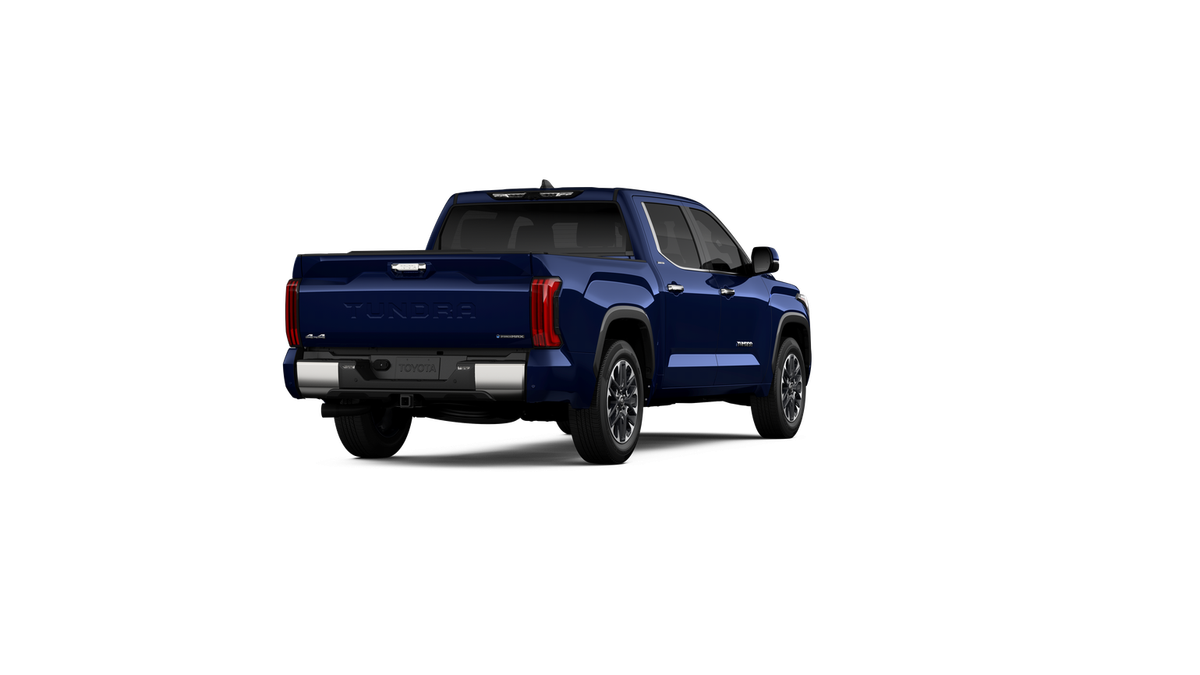

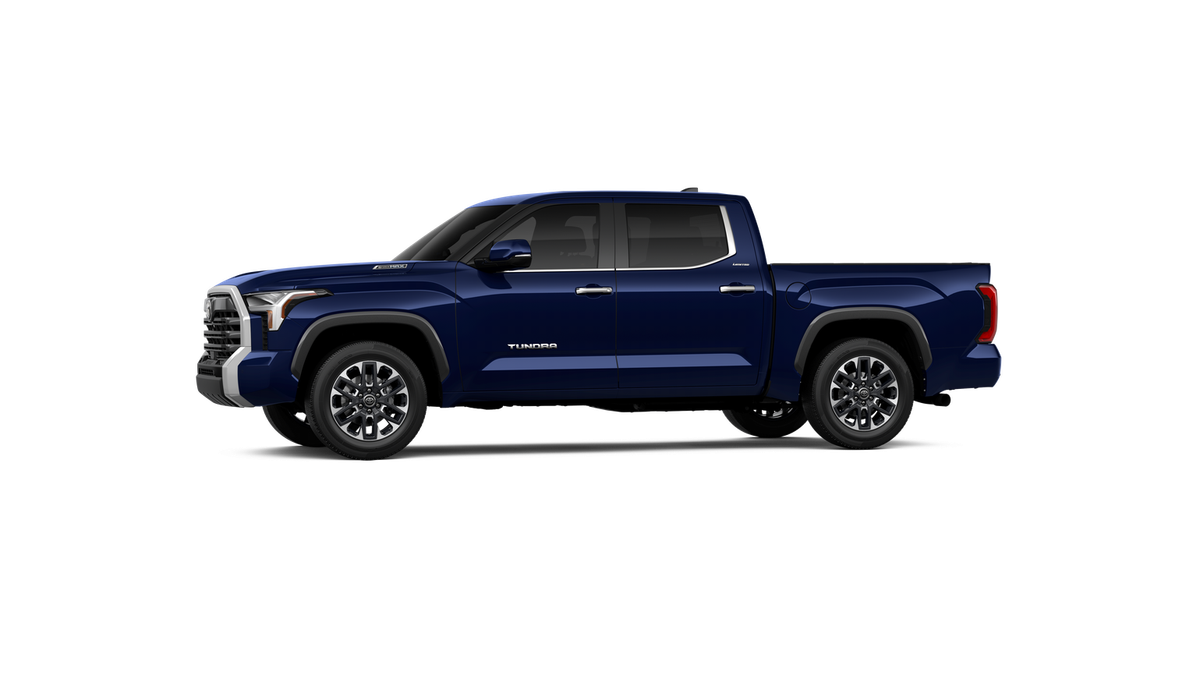

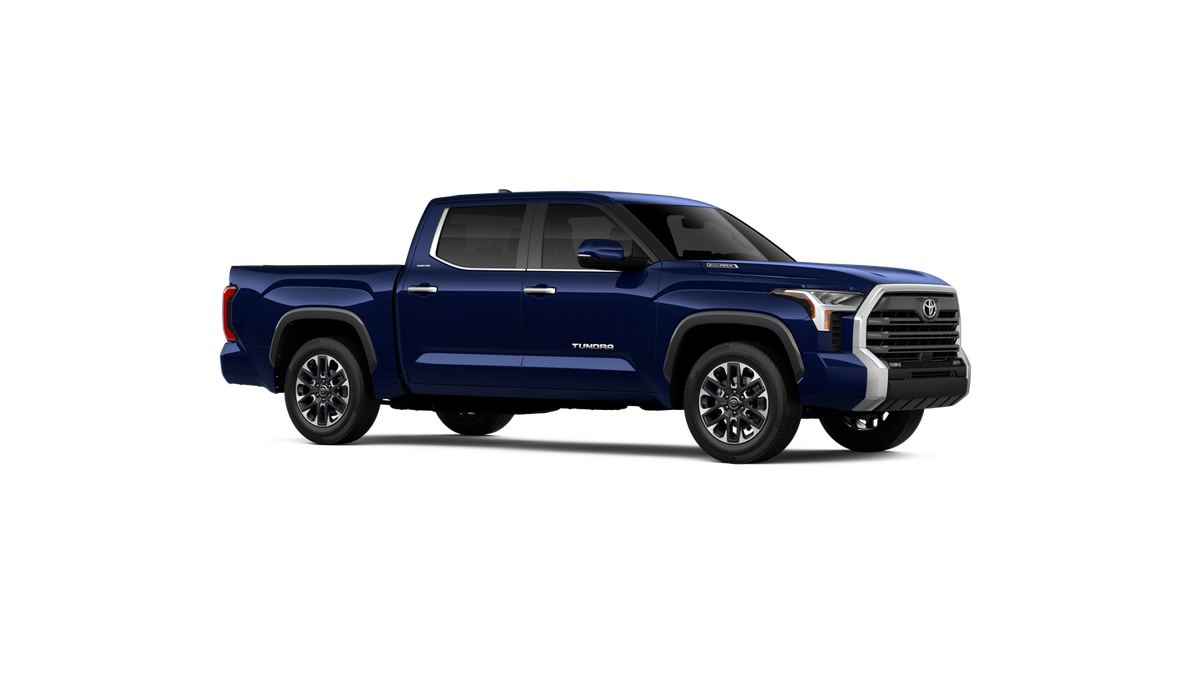

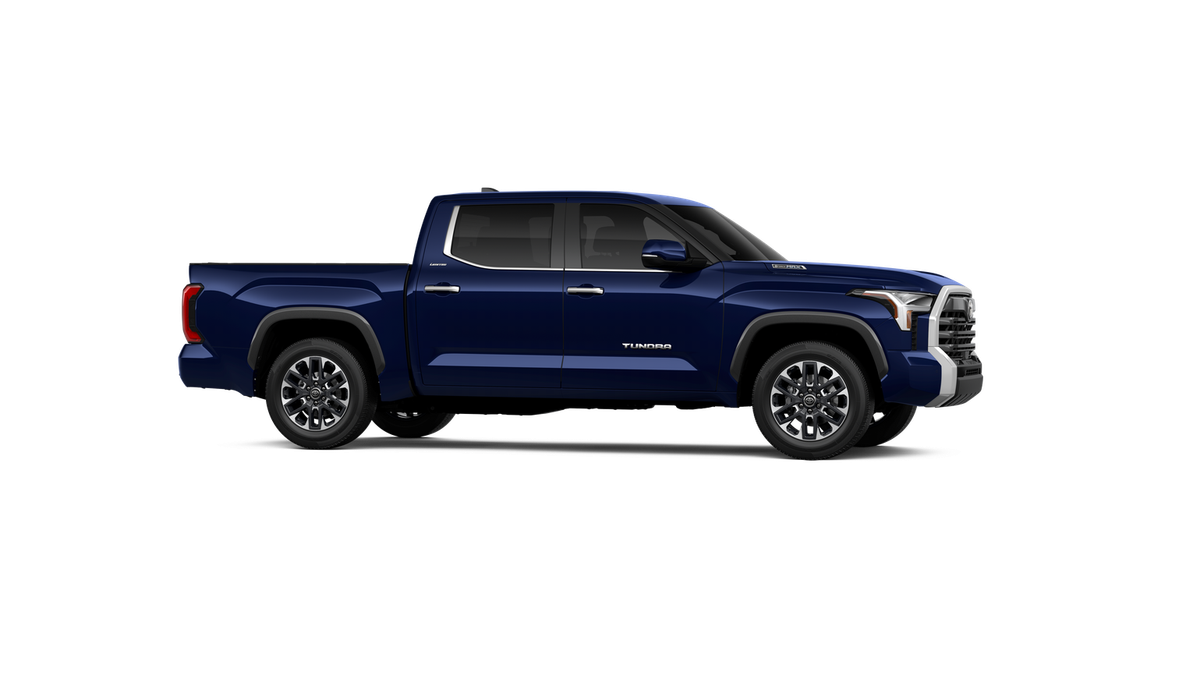

New 2025 Toyota Tundra i-FORCE MAX Limited CrewMax 5.5ft
4x4
Vehicle Summary
-
Blueprint
-
Black SofTex®-trimmed
-
VIN 5TFJC5DB6SX28A171
-
Stock #
Allocated -
Condition New
-
Exterior Blueprint
-
Interior Black SofTex®-trimmed
-
Engine i-FORCE MAX V6 Hybrid Engine
-
Drivetrain 4x4
-
Transmission 10-Speed Electronically Controlled automatic Transmission with intelligence (ECT-i) and sequential shift mode
-
Fuel Type Hybrid
-
Location Diehl Toyota
ToyotaCare is a no cost maintenance plan with 24-hour roadside assistance. The ToyotaCare plan covers normal factory scheduled maintenance for 2 years or 25,000 miles, whichever comes first. 24-hour roadside assistance is also included for 2 years and unlimited miles.
Toyota Safety Sense™ (TSS) is a bundle of active safety features included on many new Toyota vehicles at no additional cost. These innovative features were designed to help protect you and your passengers from harm.
MPG FUEL ECONOMY
CITY
HWY
AVG
Horsepower
HP
Key Features
Collision Avoidance
Lane Departure Warning
Lane Keep Assist
Adaptive Cruise Control
Cruise Control
Blind Spot Monitor
Rear Cross Traffic Alert
Parking Assist
Side-Impact Air Bags
Alloy Wheels
Tow Package
Homelink
Remote Cargo Access
Keyless Entry
Push Start
Backup Camera
Power Seats
Heated Seats
Automatic Climate Control
Fog Lights
Premium Audio
Premium Package
Panoramic Moonroof
Vehicle Accessories
Available Manufacturer Incentives
$2000
Customer Cash
Effective Dates: 2025/06/03 - 2025/06/30
You May Also Qualify For
$750
Military Rebate
Effective Dates: 2025/06/03 - 2025/06/30
$500
College Rebate
Effective Dates: 2025/06/03 - 2025/06/30
Available Lease Offers
$659 / mo
Qualified lessees can lease a new 2025 Tundra i-FORCE MAX 4WD Crew Max LTD Hybrid 10AT Model 8421 for $659 per month for 36 months with $4,999 Due At Signing. Based on 10,000 miles/yr. Security Deposit waived. Lease excludes tax, title, license, registration fees, and dealer options and charges.
Effective Dates: 2025/06/03 - 2025/06/30
Available Finance Offers
1.99% APR
1.99% APR for 60 Months
Effective Dates: 2025/06/03 - 2025/06/30
2.99% APR
2.99% APR for 72 Months
Effective Dates: 2025/06/03 - 2025/06/30
1.99% APR
1.99% APR for 48 Months
Effective Dates: 2025/06/03 - 2025/06/30
1.99% APR
1.99% APR for 36 Months
Effective Dates: 2025/06/03 - 2025/06/30
1.99% APR
1.99% APR for 24 Months
Effective Dates: 2025/06/03 - 2025/06/30
-

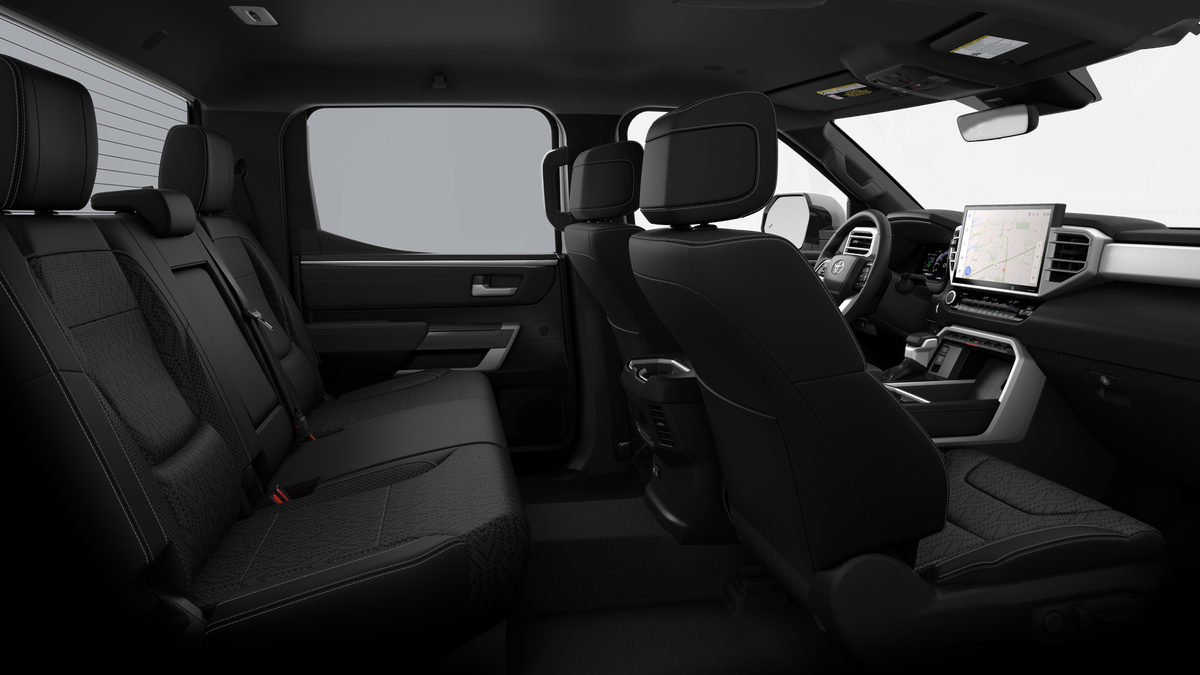

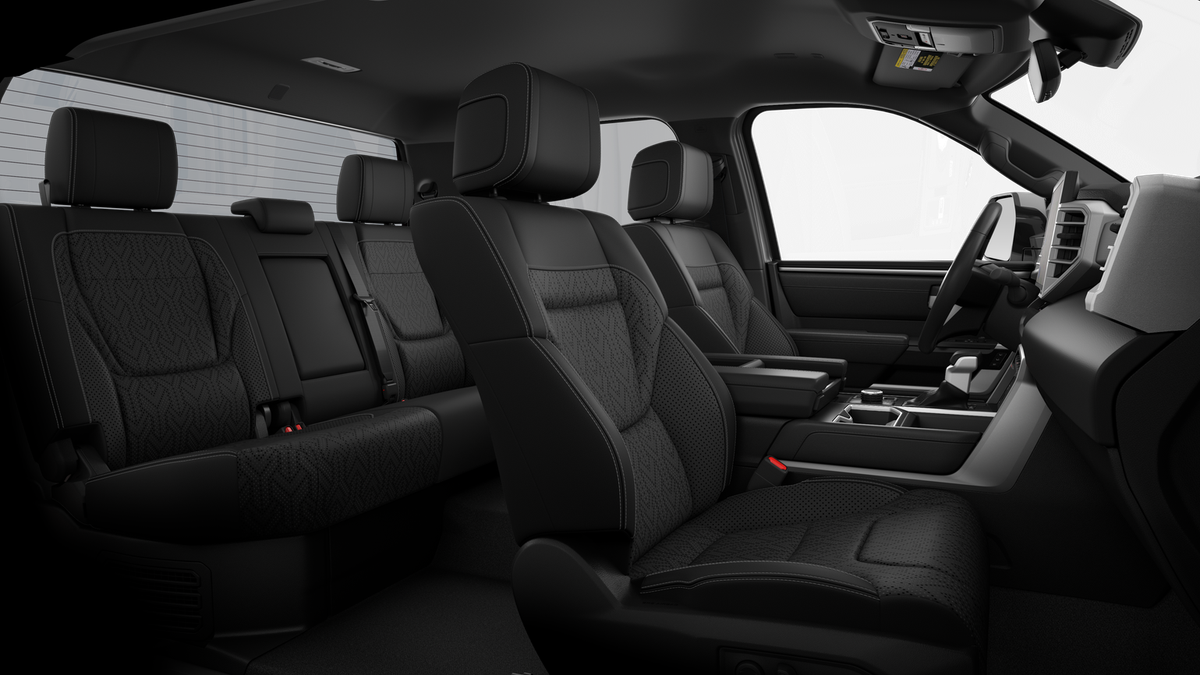

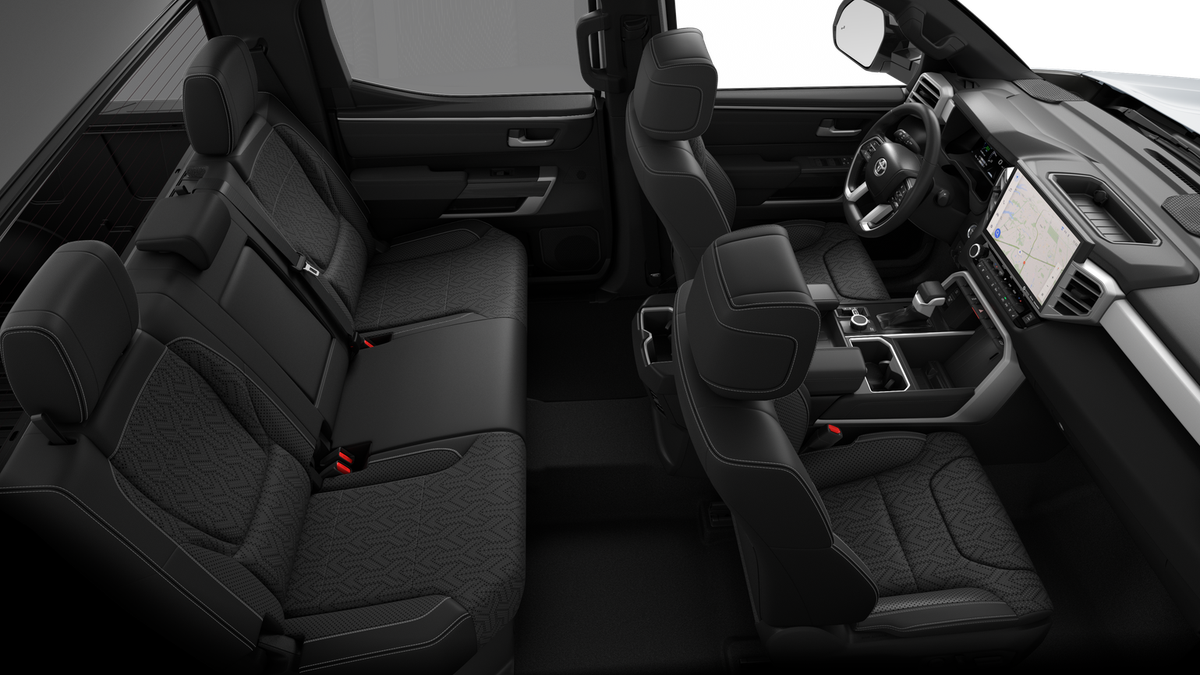

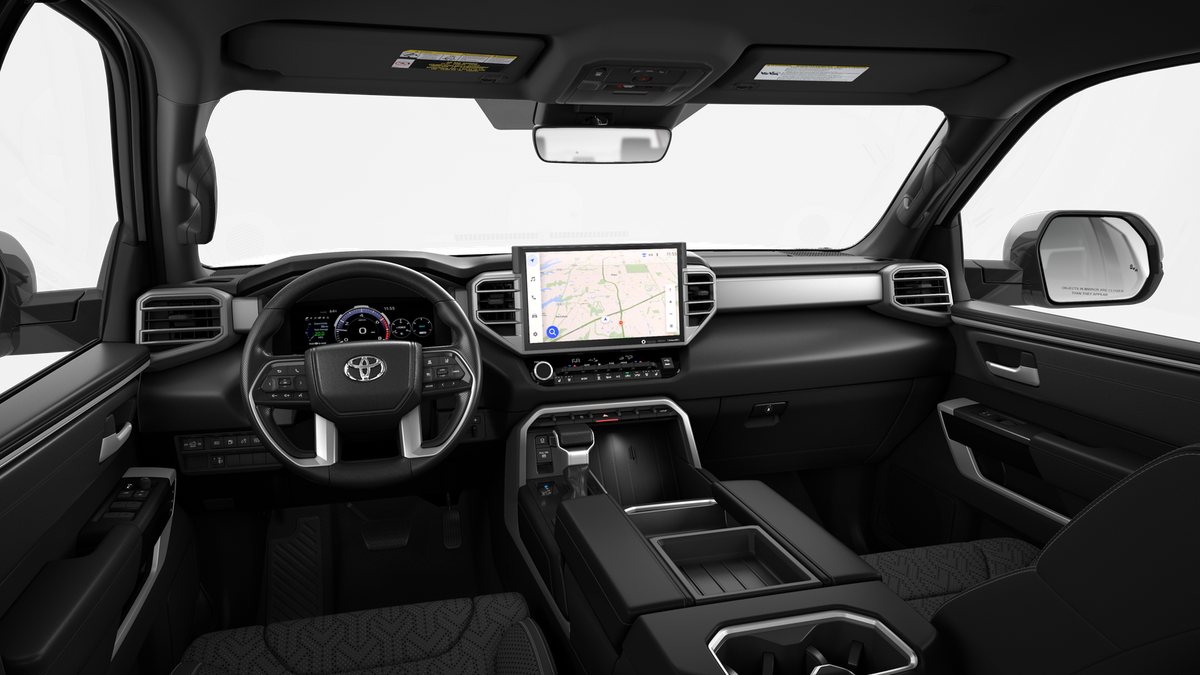

Interior
- Thin-bezel auto-dimming rearview mirror with HomeLink® universal transceiver
- Smart Key System with Push Button Start; remote keyless entry with lock, unlock, panic, tailgate release and remote illuminated entry
- Power vertical rear window with defogger and privacy glass
- Acoustic laminated windshield
- Power windows with one-touch auto up/down and jam protection
- Front and rear LED maplights
- Illuminated center console storage bin and glove box
- Soft-touch instrument panel, center console and door surfaces
- Leather-wrapped shift knob
- Backup camera with projected path
- Drive Mode Select (DMS) switch and dial
- Rear-seat air vents
- Fixed center console with gated shift lever, driving controls, four cup holders, and center storage bin
- Front 12V auxiliary power outlet
- Overhead console with rear window control, sunglasses storage and Safety Connect®
- Electronic locking fuel door
- Front and rear assist grips
- 12.3-in. digital meter with selectable gauge display screens and fuel economy, Driver Assist, vehicle/trip information, and warning messages
- SofTex®-trimmed seats; 8-way power-adjustable driver and front passenger seats with power-adjustable lumbar support
- Driver's-seat memory function
- Heated front seats
- Heated and ventilated front seats
- 60/40 split, folding rear seat with center armrest and cup holders
- Dual zone automatic climate control with air filtration and individual temperature settings for driver and front passenger
- Leather-wrapped manual tilt/telescopic steering wheel with phone, audio, display/infotainment, and Driver Assist controls
-

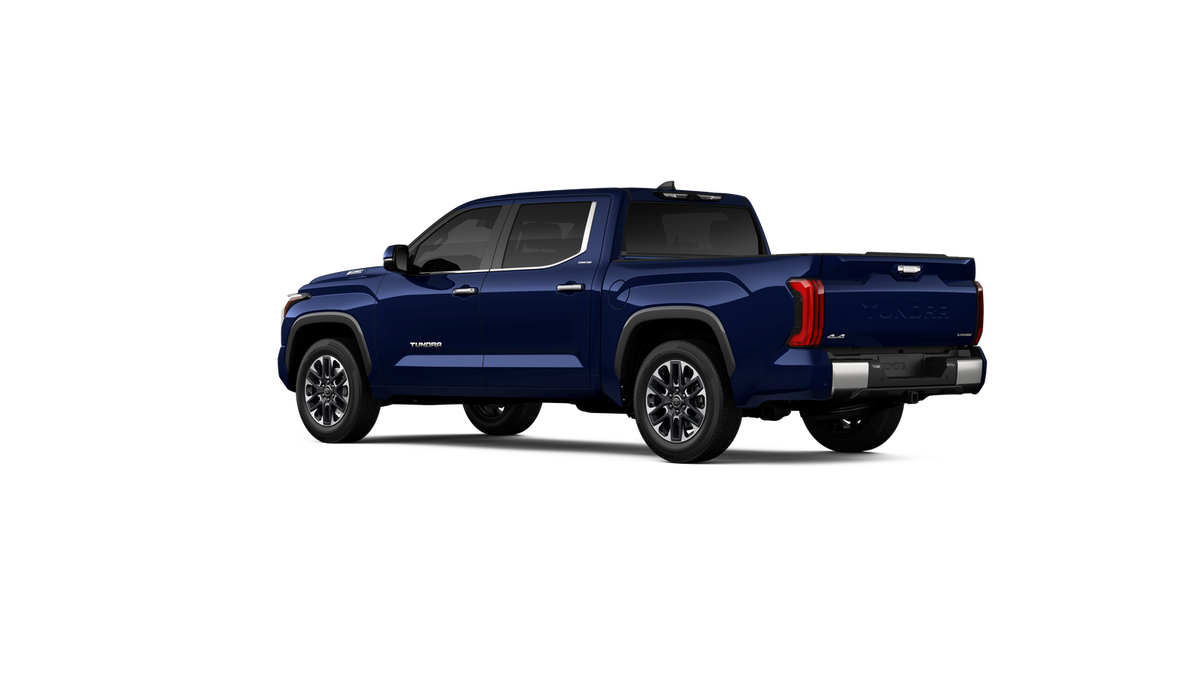

Exterior
- 20-in. gray-painted and machined-finish alloy wheels
- Front door handles with touch-sensor lock/unlock feature
- LED headlights with Daytime Running Lights (DRL), auto on/off feature, and manual leveling adjustment
- LED fog lights
- LED taillights
- Gray-painted horizontal-bar grille with satin chrome surround
- Washer-linked variable intermittent windshield wipers
- Heated power outside mirrors with turn signal and blind spot warning indicators, and power-folding and reverse tilt-down features; auto anti-glare driver's-side mirror only
- 5.5-ft. Short Bed
- Aluminum-reinforced composite bed construction
- Power tailgate-release switch, located in taillights, key fob and dash with knee-lift assit
- "TUNDRA" stamped easy lower and lift tailgate
- LED center high-mount stop light (CHMSL) with integrated cargo lights
- LED Trailer Reverse Assist (TRA) light
- Gloss-black-painted A-pillar, except on Midnight Black Metallic and Blueprint
- Chrome "TUNDRA" and "LIMITED" door badges, door handles and window molding; color-keyed mirror caps and tailgate spoiler; gray-painted overfenders
- "i-FORCE MAX" hood badge
- "4x4" tailgate badge
-
Mechanical
- Engine: i-FORCE MAX 3.4L Twin-Turbo V6 Hybrid; 437 hp @ 5200 rpm; 583 lb.-ft. @ 2400 rpm
- Valvetrain: 24-valve DOHC aluminum cylinder heads with Dual Variable Valve Timing with intelligence (VVT-i); 3445 c.c. aluminum engine block; 85.5 x 100 (mm.) bore x stroke; 10.4:1 compression ratio
- Intake: Twin turbochargers with electric wastegate valve actuators and water-cooled intercooler
- Fuel System: D-4ST direct-injection and port-injection fuel system
- Ignition System: Conventional 12V starter
- Exhaust System: Stainless steel exhaust system
- HV Electric Motor: Parallel hybrid system with permanent magnet synchronous motor/generator
- HV Electric Motor: Electric motor power: 48 hp (36 kW)
- HV Electric Motor: Electric motor torque: 184 lb.-ft. (250 N•m)
- HV Battery: 288V sealed Nickel-Metal Hydride (Ni-MH) battery with 1.87 kWh capacity
- Drive Modes: Eco, Normal and Sport driving modes
- Transmission: 10-speed Electronically Controlled automatic Transmission with intelligence (ECT-i), sequential shift mode, and uphill/downhill shift logic
- Drivetrain: 4WDemand part-time 4-Wheel Drive with electronically controlled 2-speed transfer case (high/low range) and Automatic Limited-Slip Differential (Auto LSD)
- Suspension: Independent double-wishbone front suspension; coil spring multi-link rear suspension
- Steering: Electric Power Steering (EPS); power-assisted rack-and-pinion
- Brakes: Power-assisted, ventilated 13.9-in. front disc brakes with opposed dual-piston brake calipers; ventilated 13.6-in. rear disc brakes with single-piston calipers
- Brakes: Electronically Controlled Braking (ECB) system with integrated regenerative braking
- Brakes: Electric Parking Brake (EPB)
- Body/Frame: Fully boxed high-strength steel ladder frame
- Body/Frame: Hydraulic cab mounts
- Body/Frame: Ultra-high-strength steel cabin construction with aluminum hood and front door panels
- Body/Frame: Active aero front spoiler
- Body/Frame: Active grille shutters
- Towing: Class-IV towing hitch receiver and wiring harness with 7-pin/4-pin connector
- Towing: Integrated Trailer Brake Controller (ITBC) with Multi-Information Display (MID) screen and trailer brake type, gain and manual trailer brake output controls
-
Safety
- 3-point seatbelts for all seating positions; driver-side Emergency Locking Retractor (ELR) and Automatic/Emergency Locking Retractor (ALR/ELR) on all passenger seatbelts
- Blind Spot Monitor (BSM) with Rear Cross-Traffic Alert (RCTA) and Trailer Merge Warning
- Front and Rear Parking Assist with Automatic Braking
- Eight total airbags, including driver and passenger side, knee and curtain airbags
- LATCH (Lower Anchors and Tethers for CHildren) includes lower anchors on all outboard second-row rear seats
- Child-protector rear door locks and power window lockout control
- Star Safety System™ — includes Vehicle Stability Control (VSC), Traction Control (TRAC), Anti-lock Brake System (ABS) with Electronic Brake-force Distribution (EBD), Brake Assist (BA) and Smart Stop Technology® (SST)
- Drive-Start Control (DSC)
- Hill Start Assist Control (HAC)
- Tire Pressure Monitor System (TPMS)
- Driver and front passenger active headrests
Toyota Safety Sense™ 2.5 (TSS 2.5) Pre-Collision System with Pedestrian Detection (PCS w/PD), Full-Speed Range Dynamic Radar Cruise Control (DRCC), Lane Departure Alert with Steering Assist (LDA w/SA), Lane Tracing Assist (LTA), Automatic High Beams (AHB), Road Sign Assist (RSA)
